Texas Instruments LM358DR

LM358DR Overview

The LM358DR device is a dual-channel operational amplifier (op amp) from Texas Instruments, housed in an SOIC-8 package. It includes two independent high-gain amplifiers with internal frequency compensation, making it suitable for a wide range of analog signal processing applications.
This device is ideal for both single-supply and dual-supply operations. The wide supply voltage range, low power consumption, and robust EMI performance make LM358DR a popular choice in consumer, industrial, and automotive electronics.
LM358 devices can operate from a split supply voltage as long as the difference between the two supplies is within 3 V to 32 V. Their low quiescent current, high input impedance, and low offset voltage make them an excellent choice for signal conditioning circuits such as voltage followers, sensor amplifiers, and more.

LM358DR Features

✅ Wide Supply Voltage Range: 3V to 36V (single) or ±1.5V to ±18V (dual)
✅ Low Power Consumption: Typical quiescent current is only 300 μA per amplifier
✅ Unity-Gain Bandwidth: 1.2 MHz typical
✅ Low Input Offset Voltage: Max 3 mV (2 mV for BA version)
✅ Common-Mode Input Range Includes Ground
✅ Integrated EMI and RF Filters (B and BA versions)
✅ Internal Frequency Compensation: Stable without external components
✅ MIL-PRF-38535 compliant versions available for military/space-grade reliability

Pin Configuration and Functions

Pin 1 - output
Pin 2 - inverting input
Pin 3 - non-inverting input
Pin 4 - negative power supply (dual power supply) or ground (single power supply)
Pin 5 - non-inverting Input terminal
Pin 6 - inverting input terminals
Pin 7 - output terminals
Pin 8 - positive power supply

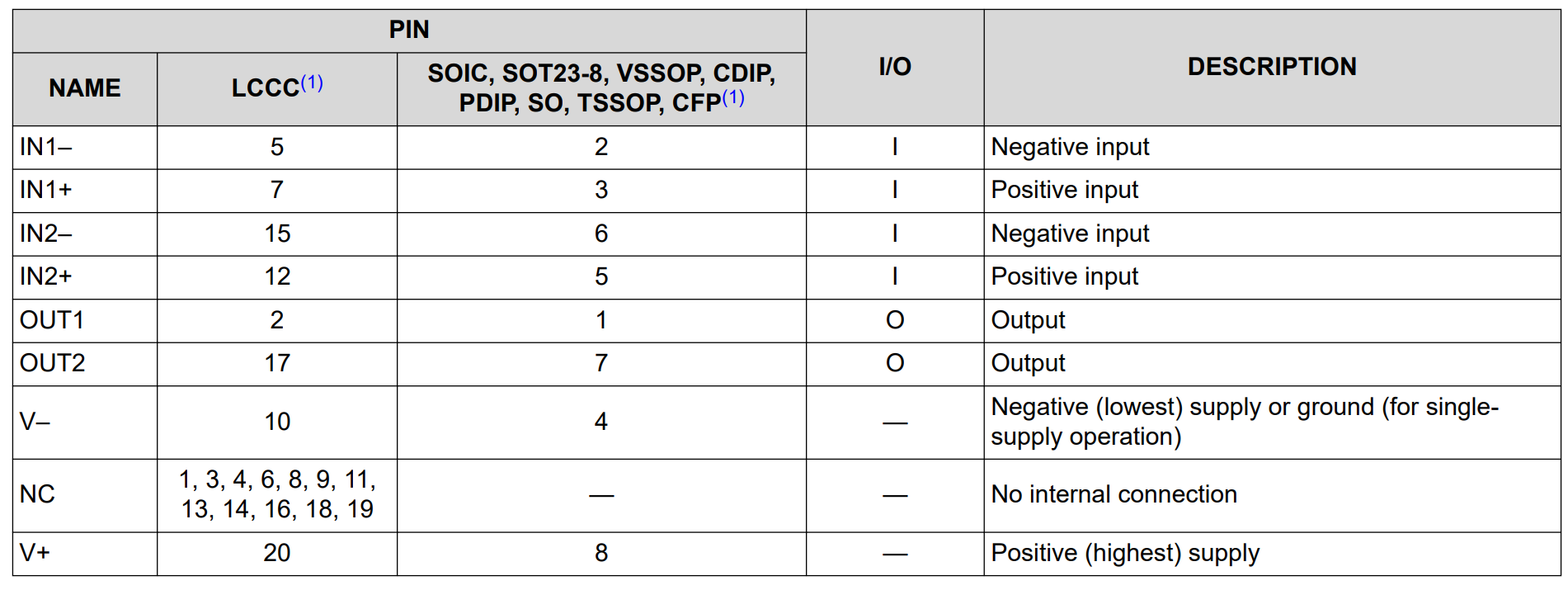

Pin Functions

LM358DR  Applications

LM358DR is widely used in cost-effective signal processing and control systems across many industries:
Power supply and battery charger circuits
Sensor signal amplifiers and ADC front-ends
Motor control (AC, brushed, brushless, stepper)
Multifunction printers and office electronics
HVAC equipment (indoor & outdoor units)
Home appliances (washers, dryers, refrigerators)
Industrial automation and control systems
UPS (Uninterruptible Power Supply) systems
POS terminals and embedded devices

LM358B / LM2904B Series Package Information

Part Number(s)	Package Type	Package Size (mm)
LM358B, LM358BA, LM2904B, LM2904BA, LM358, LM358A, LM2904, LM2904V, LM258, LM258A	D (SOIC-8)	4.9 × 6.0
LM358B, LM358BA, LM2904B, LM2904BA, LM358, LM358A, LM2904, LM2904V	PW (TSSOP-8)	3.0 × 6.4

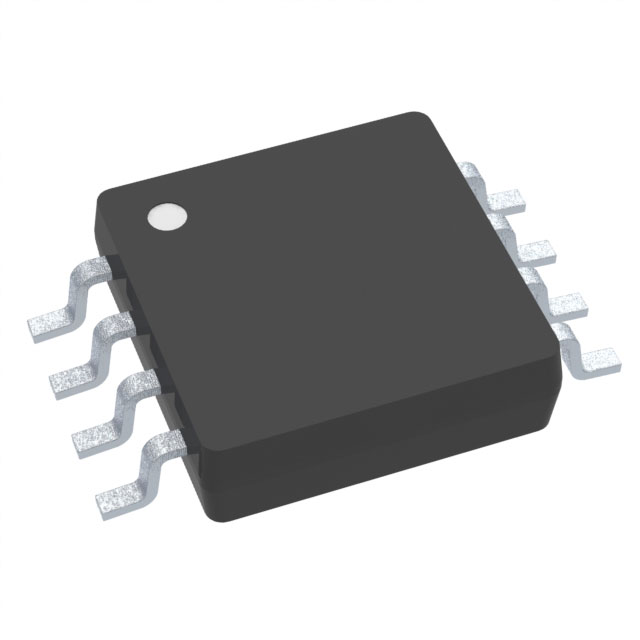

LM358B, LM358BA, LM2904B, LM2904BA, LM358, LM358A, LM2904, LM2904V, LM258, LM258A	DGK (VSSOP-8)	3.0 × 4.9
LM358B, LM358BA, LM2904B, LM2904BA	DDF (SOT-23-8)	2.9 × 2.8
LM358, LM2904	PS (SO-8)	6.2 × 7.8

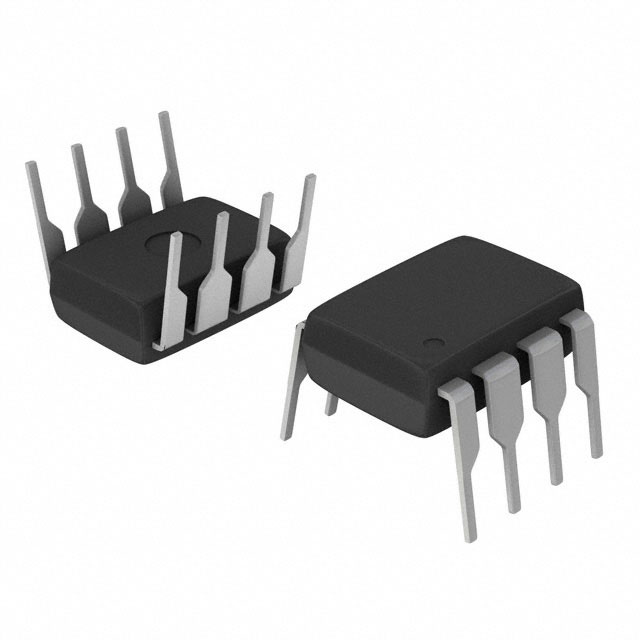

LM358, LM2904, LM358A, LM258, LM258A	P (PDIP-8)	9.81 × 9.43
LM158, LM158A	JG (CDIP-8)	6.99 × 6.67
LM158, LM158A	FK (LCCC-20)	8.89 × 8.89

LM358DR FAQ

Q1: Can LM358DR operate with a single power supply?

A: Yes. The LM358 is specifically designed for single-supply systems, supporting voltages as low as 3V and as high as 36V.

Q2: Is LM358DR suitable for low-power applications?

A: Absolutely. With a typical quiescent current of only 300 μA per channel, it is ideal for battery-powered or energy-conscious designs.

Q3: Does it support input signals near ground?

A: Yes. The input common-mode voltage range includes ground, which is useful for low-side current sensing and signal acquisition.

Q4: How does LM358DR compare to LM324?

A: LM324 is a quad op-amp (4 channels), while LM358 contains only two. Electrical characteristics are similar, and they are often interchangeable based on channel requirements.

Q5: Can LM358DR be used as a comparator?

A: Technically yes, but for faster response and rail-to-rail outputs, a dedicated comparator like the LM393 is recommended.

Q6: What is the typical use in signal acquisition?

A: LM358DR is often used as a voltage follower (buffer) to prevent loading of the signal source and to raise input impedance.

画像
部品番号	LM358DR	LM358DRG3	LM358DRE4	LM358DRG4	LM358DR-JF
メーカー	Texas Instruments	Texas Instruments	Texas Instruments	Texas Instruments	Texas Instruments
シリーズ	-	-	-	-	-
パッケージ/ケース	8-SOIC (0.154", 3.90mm Width)	8-SOIC (0.154", 3.90mm Width)	8-SOIC (0.154", 3.90mm Width)	8-SOIC (0.154", 3.90mm Width)	8-SOIC (0.154", 3.90mm Width)
パッケージ	Tape & Reel (TR)	Tape & Reel (TR)	Tape & Reel (TR)	Tape & Reel (TR)	Bulk
製品状態	Active	Obsolete	Obsolete	Obsolete	Active
アンプ タイプ	General Purpose	General Purpose	General Purpose	General Purpose	General Purpose
回路数	2	2	2	2	2
出力タイプ	-	-	-	-	-
スルー レート	0.3V/µs	0.3V/µs	0.3V/µs	0.3V/µs	0.3V/µs
ゲイン帯域幅積	700 kHz	700 kHz	700 kHz	700 kHz	700 kHz
-3db 帯域幅	-	-	-	-	-
電流 - 入力バイアス	20 nA	20 nA	20 nA	20 nA	20 nA
電圧 - 入力オフセット	3 mV	3 mV	3 mV	3 mV	3 mV
電源電流	500µA (x2 Channels)	500µA (x2 Channels)	500µA (x2 Channels)	500µA (x2 Channels)	500µA (x2 Channels)
電流 - 出力 / チャネル	40 mA	40 mA	40 mA	40 mA	30 mA
電圧 - 電源スパン (最小)	3 V	3 V	3 V	3 V	3 V
電圧 - 電源スパン (最大)	30 V	30 V	30 V	30 V	30 V
動作温度	0°C ~ 70°C (TA)	0°C ~ 70°C (TA)	0°C ~ 70°C (TA)	0°C ~ 70°C (TA)	0°C ~ 70°C (TA)
グレード	-	-	-	-	-
資格	-	-	-	-	-
マウントタイプ	Surface Mount	Surface Mount	Surface Mount	Surface Mount	Surface Mount
サプライヤ デバイス パッケージ	8-SOIC	8-SOIC	8-SOIC	8-SOIC	8-SOIC
