ヒート シンク
| 写真 | メーカー部品番号 | 在庫状況 | 数量 | データシート | シリーズ | パッケージ | 製品状態 | タイプ | パッケージ冷却 | 取り付け方法 | 形状 | 長さ | 幅 | 直径 | フィンの高さ | 温度上昇時の消費電力 | 強制空気流時の熱抵抗 | 自然時の熱抵抗 | 材質 | 材質仕上げ |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

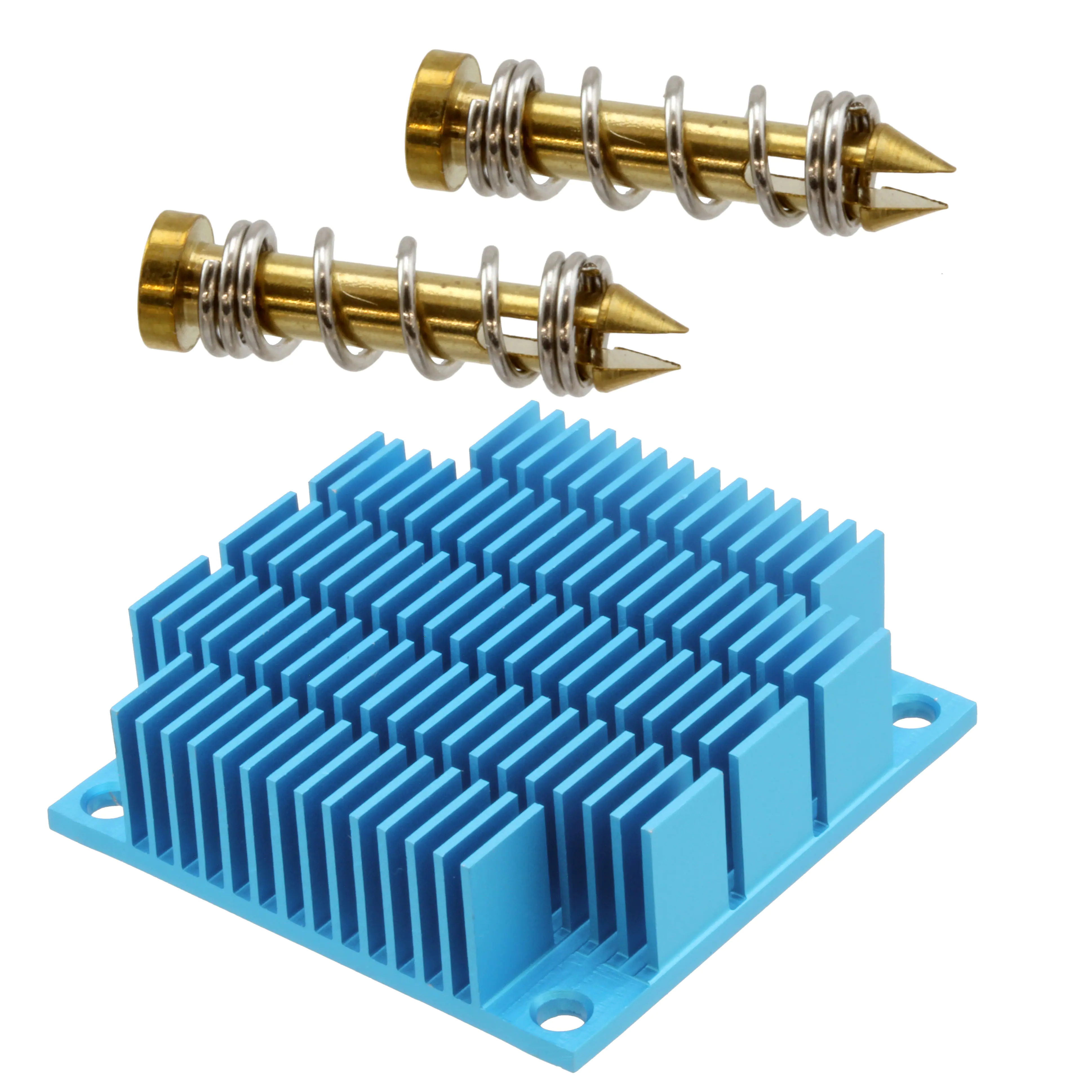

ATS-12F-13-C2-R0HEATSINK 50X50X15MM XCUT T766 |
100 |
|
データシート |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.969" (50.00mm) | 1.969" (50.00mm) | - | 0.590" (15.00mm) | - | 13.70°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
ATS-05H-13-C2-R0HEATSINK 50X50X15MM XCUT T766 |
100 |
|
データシート |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.969" (50.00mm) | 1.969" (50.00mm) | - | 0.590" (15.00mm) | - | 13.70°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
ATS-04A-13-C2-R0HEATSINK 50X50X15MM XCUT T766 |
100 |
|
データシート |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.969" (50.00mm) | 1.969" (50.00mm) | - | 0.590" (15.00mm) | - | 13.70°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
ATS-11A-13-C2-R0HEATSINK 50X50X15MM XCUT T766 |
100 |
|
データシート |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.969" (50.00mm) | 1.969" (50.00mm) | - | 0.590" (15.00mm) | - | 13.70°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
ATS-09B-13-C2-R0HEATSINK 50X50X15MM XCUT T766 |
100 |
|
データシート |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.969" (50.00mm) | 1.969" (50.00mm) | - | 0.590" (15.00mm) | - | 13.70°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
ATS-18C-13-C2-R0HEATSINK 50X50X15MM XCUT T766 |
100 |
|
データシート |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.969" (50.00mm) | 1.969" (50.00mm) | - | 0.590" (15.00mm) | - | 13.70°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
ATS-04E-13-C2-R0HEATSINK 50X50X15MM XCUT T766 |
100 |
|
データシート |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.969" (50.00mm) | 1.969" (50.00mm) | - | 0.590" (15.00mm) | - | 13.70°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
ATS-19E-13-C2-R0HEATSINK 50X50X15MM XCUT T766 |
100 |
|
データシート |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.969" (50.00mm) | 1.969" (50.00mm) | - | 0.590" (15.00mm) | - | 13.70°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
ATS-09C-174-C2-R0HEATSINK 30X30X35MM R-TAB T766 |
2,584 |
|
データシート |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.181" (30.00mm) | 1.181" (30.00mm) | - | 1.378" (35.00mm) | - | 4.02°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
ATS-54325R-C0-R0HEATSINK 32.5X32.5X19.5MM NO TIM |
100 |
|
データシート |
- | Bulk | Active | Top Mount | BGA | Thermal Tape, Adhesive (Not Included) | Square, Fins | 1.280" (32.51mm) | 1.280" (32.51mm) | - | 0.768" (19.50mm) | - | 4.10°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|
ATS-P2-105-C2-R1HEATSINK 45.00MM X 45.00MM ALUM |
1,560 |
|
データシート |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.772" (45.00mm) | 1.772" (45.00mm) | - | 0.374" (9.50mm) | - | 28.22°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
ATS-P1-31-C2-R0HEATSINK 57.9X36.83X5.84MM T766 |
1,441 |
|
データシート |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Rectangular, Fins | 2.280" (57.90mm) | 1.450" (36.83mm) | - | 0.230" (5.84mm) | - | 25.25°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
ATS-21C-124-C2-R0HEATSINK 50X50X25MM XCUT T766 |
2,853 |
|
データシート |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.969" (50.00mm) | 1.969" (50.00mm) | - | 0.984" (25.00mm) | - | 3.18°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|

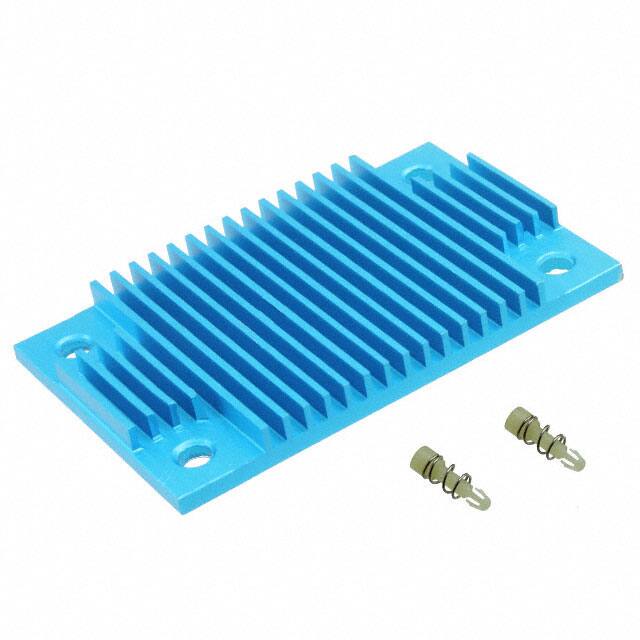

ATS-P1-35-C2-R0HEATSINK 36.83X57.6X5.84MM T766 |
4,108 |
|
データシート |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Rectangular, Fins | 1.450" (36.83mm) | 2.267" (57.60mm) | - | 0.230" (5.84mm) | - | 22.48°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|

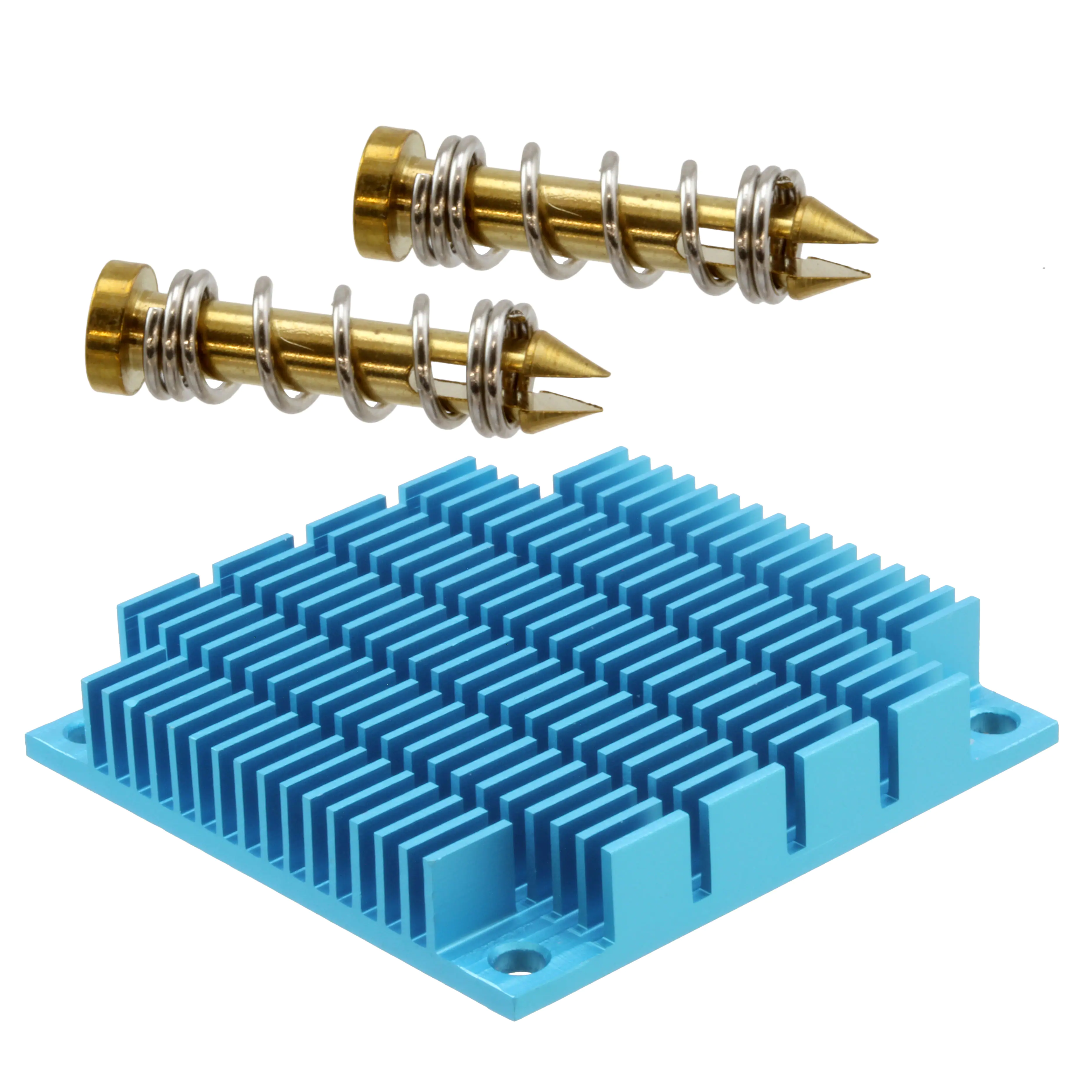

ATS-03G-203-C2-R0HEATSINK 54X54X10MM XCUT T766 |
1,582 |
|
データシート |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 2.126" (54.00mm) | 2.126" (54.00mm) | - | 0.394" (10.00mm) | - | 8.93°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
CR201-75VEALUMINUM HEATSINK 75MM DEGREASED |
3,771 |
|
データシート |
CR | Box | Active | Board Level, Vertical | TO-201 | 3 Clips and PC Pin | Rectangular, Fins | 2.953" (75.00mm) | 2.953" (75.00mm) | - | - | - | - | 2.60°C/W | Aluminum Alloy | Degreased |
|

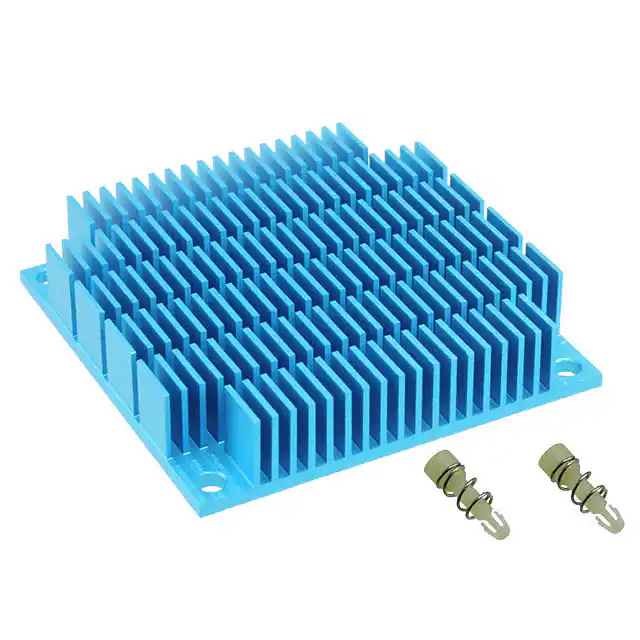

ATS-P1-22-C2-R0HEATSINK 60X60X12.7MM XCUT T766 |
2,817 |
|
データシート |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 2.362" (60.00mm) | 2.362" (60.00mm) | - | 0.500" (12.70mm) | - | 13.83°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
ATS-12H-180-C2-R0HEATSINK 35X35X35MM R-TAB T766 |
100 |
|
データシート |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.378" (35.00mm) | 1.378" (35.00mm) | - | 1.378" (35.00mm) | - | 3.32°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|

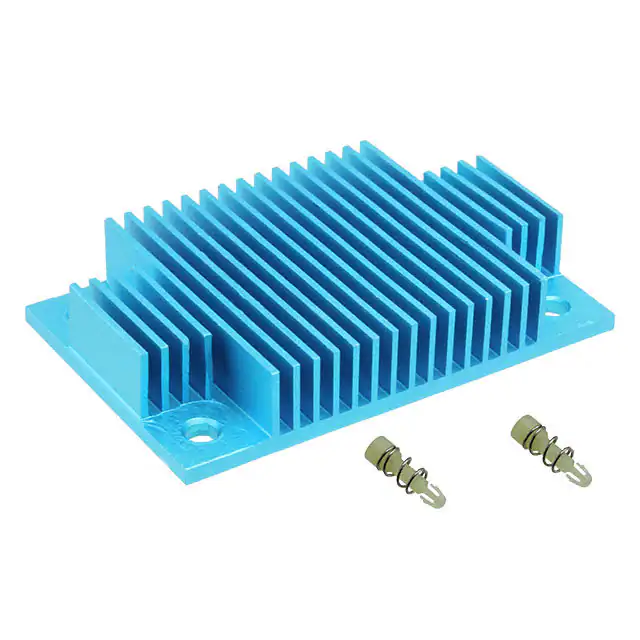

ATS-P1-36-C2-R0HEATSINK 36.83X57.6X11.43MM T766 |
1,391 |
|
データシート |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Rectangular, Fins | 1.450" (36.83mm) | 2.267" (57.60mm) | - | 0.450" (11.43mm) | - | 14.82°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|

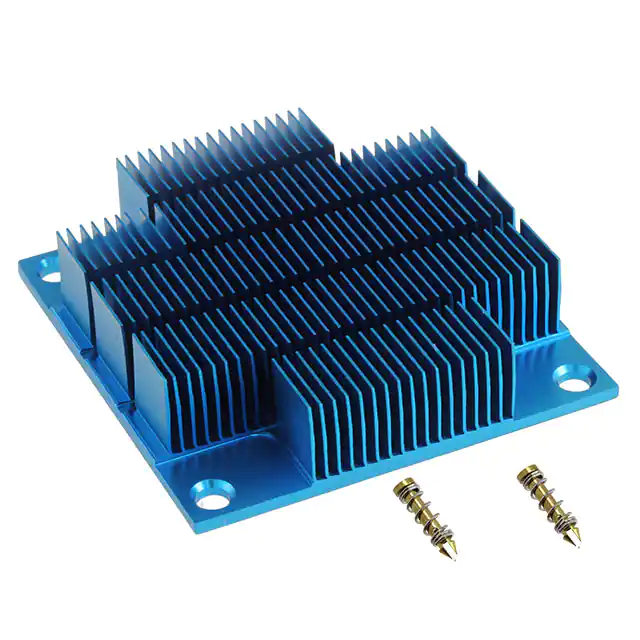

ATS-P2-108-C2-R1HEATSINK 50MM X 50MM ALUMINUM |
1,476 |
|
データシート |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.969" (50.00mm) | 1.969" (50.00mm) | - | 0.500" (12.70mm) | - | 27.03°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
