ヒート シンク
| 写真 | メーカー部品番号 | 在庫状況 | 数量 | データシート | シリーズ | パッケージ | 製品状態 | タイプ | パッケージ冷却 | 取り付け方法 | 形状 | 長さ | 幅 | 直径 | フィンの高さ | 温度上昇時の消費電力 | 強制空気流時の熱抵抗 | 自然時の熱抵抗 | 材質 | 材質仕上げ |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
R2A-CT4-38EHEATSINK FOR TO-247 |
1,212 |
|
データシート |
R2 | Box | Active | Board Level | TO-247 | Clip and PC Pin | Rectangular, Fins | 1.500" (38.10mm) | 1.380" (35.05mm) | - | 0.870" (22.10mm) | 2.0W @ 20°C | 1.00°C/W @ 800 LFM | 8.60°C/W | Aluminum | Black Anodized |
|
542502B00000GHEATSINK TO-220 TAB BLACK |
3,146 |
|
データシート |
- | Bulk | Active | Board Level, Vertical | TO-220 | Bolt On and PC Pin | Rectangular, Fins | 1.250" (31.75mm) | 0.875" (22.22mm) | - | 0.250" (6.35mm) | 2.5W @ 60°C | 4.00°C/W @ 700 LFM | 24.00°C/W | Aluminum | Black Anodized |
|
7-340-2PP-BAHEATSINK PWR DUAL BLACK TO-220 |
1,400 |
|
データシート |
7 | Box | Active | Board Level | TO-220 | Bolt On | Rectangular, Fins | 1.500" (38.10mm) | 1.150" (29.21mm) | - | 0.460" (11.68mm) | 9.0W @ 60°C | - | 6.67°C/W | Aluminum | Black Anodized |
|
RA-T2X-51EHEATSINK TO-218,TO-220,TO-247 |
1,525 |
|
データシート |
R | Box | Active | Board Level, Vertical | TO-218, TO-220, TO-247 | Bolt On and PC Pin | Rectangular, Fins | 1.654" (42.00mm) | 0.985" (25.00mm) | - | 2.000" (50.80mm) | 8.0W @ 40°C | 1.00°C/W @ 300 LFM | 3.50°C/W | Aluminum | Black Anodized |
|
ATS-CPX025025015-138-C2-R0HEATSINK 25X25X15MM L-TAB CP |
1,822 |
|
データシート |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 0.984" (25.00mm) | 0.984" (25.00mm) | - | 0.590" (15.00mm) | - | 12.18°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
573400D00010GHEATSINK D-PAK3 TIN PLATED SMD |
2,500 |
|
データシート |
- | Tape & Reel (TR) | Active | Top Mount | TO-268 (D³Pak) | SMD Pad | Rectangular, Fins | 0.500" (12.70mm) | 1.220" (30.99mm) | - | 0.401" (10.20mm) | 1.0W @ 20°C | 4.00°C/W @ 600 LFM | 14.00°C/W | Copper | Tin |
|
590102B03600GHEATSINK TO-220 W/TABS 1.67"HIGH |
5,129 |
|
データシート |
- | Tray | Active | Board Level, Vertical | TO-220 | Bolt On and PC Pin | Rectangular, Fins | 1.675" (42.55mm) | 1.000" (25.40mm) | - | 1.000" (25.40mm) | 2.5W @ 30°C | 4.00°C/W @ 300 LFM | 10.00°C/W | Aluminum | Black Anodized |
|
APF19-19-13CB/A01HEATSINK FORGED W/ADHESIVE TAPE |
9,347 |
|
データシート |
APF | Box | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Thermal Tape, Adhesive (Included) | Square, Fins | 0.748" (19.00mm) | 0.748" (19.00mm) | - | 0.500" (12.70mm) | - | 4.00°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|
573300D00000GTOP MOUNT HEATSINK .4" D2PAK |
1,508 |
|
データシート |
- | Bulk | Active | Top Mount | TO-263 (D²Pak) | SMD Pad | Rectangular, Fins | 0.500" (12.70mm) | 1.030" (26.16mm) | - | 0.400" (10.16mm) | 1.3W @ 30°C | 8.00°C/W @ 300 LFM | 18.00°C/W | Aluminum | Tin |
|
CR101-50AEALUMINUM HEATSINK 50MM BLK ANODI |
312 |
|
データシート |
CR | Box | Active | Board Level, Vertical | TO-101 | 3 Clips and PC Pin | Rectangular, Fins | 1.969" (50.00mm) | 1.969" (50.00mm) | - | - | - | - | 5.30°C/W | Aluminum Alloy | Black Anodized |
|
C247-025-1AEHEATSINK FOR TO-247 WITH 1 CLIP |
6,482 |
|
データシート |
C | Box | Active | Board Level, Vertical | TO-247 | Clip and PC Pin | Rectangular, Fins | 0.984" (25.00mm) | 1.500" (38.10mm) | - | 0.710" (18.03mm) | 5.0W @ 60°C | 6.00°C/W @ 350 LFM | - | Aluminum | Black Anodized |
|
530102B00150GHEAT SINK 1.75" HIGH RISE TO-220 |
2,671 |
|
データシート |
- | Bulk | Active | Board Level, Vertical | TO-220 | Clip and Board Mounts | Square, Fins | 1.750" (44.45mm) | 0.490" (12.44mm) | - | 1.750" (44.45mm) | 4.0W @ 30°C | 1.50°C/W @ 400 LFM | 6.30°C/W | Aluminum | Black Anodized |
|
531302B02500GHEATSINK TO-220 H=2.5" BLK W/PIN |
1,034 |
|
データシート |
- | Bulk | Active | Board Level, Vertical | TO-220, TO-202 | Bolt On and PC Pin | Rectangular, Fins | 2.500" (63.50mm) | 1.375" (34.93mm) | - | 0.500" (12.70mm) | 6.0W @ 40°C | 4.00°C/W @ 500 LFM | 8.00°C/W | Aluminum | Black Anodized |
|

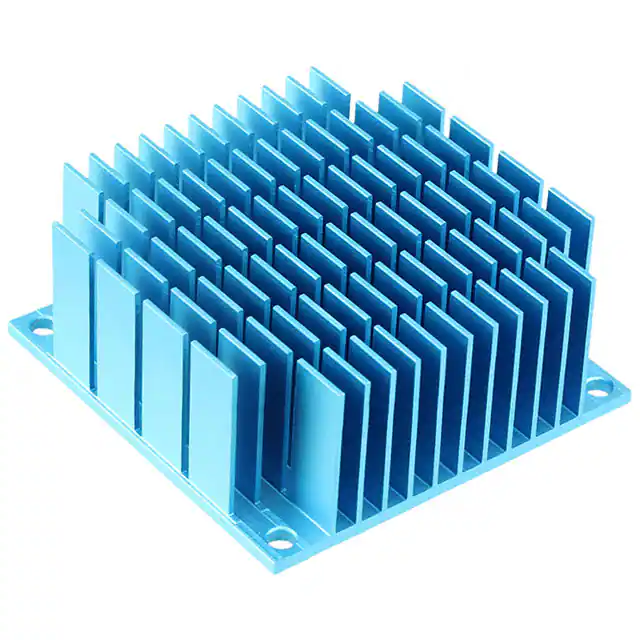

ATS-CPX060060025-132-C2-R0HEATSINK 60X60X25MM XCUT CP |
5,915 |
|
データシート |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 2.362" (60.00mm) | 2.362" (60.00mm) | - | 0.984" (25.00mm) | - | 2.66°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
6030B-TTGTHM,10594B-TT REV BB(COPPER)G |
2,395 |
|
データシート |
- | Bulk | Active | Board Level, Vertical | TO-220 | Bolt On and PC Pin | Rectangular, Fins | 1.180" (29.97mm) | 1.000" (25.40mm) | - | 0.500" (12.70mm) | - | - | - | Copper | Tin, Black Paint |
|
530101B00150GHEATSINK 1.75" HI RISE TO-218 |
3,446 |
|
データシート |
- | Bulk | Active | Board Level, Vertical | TO-218 | Clip and Board Mounts | Square, Fins | 1.750" (44.45mm) | 0.490" (12.44mm) | - | 1.750" (44.45mm) | 4.0W @ 30°C | 1.50°C/W @ 400 LFM | 6.30°C/W | Aluminum | Black Anodized |
|
D10650-40HEATSINK 100PQFP COMPOSITE |
1,145 |
|
データシート |
Deltem™ | Tube | Active | Top Mount | BGA | Thermal Tape, Adhesive (Not Included) | Square, Pin Fins | 0.650" (16.51mm) | 0.650" (16.51mm) | - | 0.400" (10.16mm) | 2.0W @ 40°C | 25.00°C/W @ 350 LFM | - | Composite | - |
|
960-19-12-F-AB-0HEATSINK 19X12MM FRONT PUSH PIN |
119 |
|
データシート |
960 | Box | Active | Top Mount | BGA | Push Pin | Square, Pin Fins | 0.748" (19.00mm) | 0.748" (19.00mm) | - | 0.472" (12.00mm) | - | 8.60°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|
518-95ABHEATSINK DC/DC HALF BRICK VERT |
2,907 |
|
データシート |
518 | Bulk | Active | Board Level | Half Brick DC/DC Converter | Bolt On | Rectangular, Fins | 2.402" (61.00mm) | 2.280" (57.91mm) | - | 0.950" (24.13mm) | 11.0W @ 60°C | 2.00°C/W @ 300 LFM | - | Aluminum | Black Anodized |
|
960-19-15-D-AB-0HEATSINK 19X15MM DIA PUSH PIN |
1,008 |
|
データシート |
960 | Tray | Active | Top Mount | BGA | Push Pin | Square, Pin Fins | 0.748" (19.00mm) | 0.748" (19.00mm) | - | 0.590" (15.00mm) | - | 6.80°C/W @ 200 LFM | - | Aluminum | Black Anodized |
