信号コンディショナーおよびアイソレータ
| 写真 | メーカー部品番号 | 在庫状況 | 数量 | データシート | シリーズ | パッケージ | 製品状態 | タイプ | 入力タイプ | 入力範囲 (電流、電圧) | 入力範囲 (追加) | 出力タイプ | 出力範囲 | 絶縁 | 機能 | 電源電圧 | マウントタイプ | 端子スタイル | 動作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
IAMA0001MOD UNIV SIGNAL CONDITIONER |
4,270 |
|
データシート |
IAMA | Bulk | Active | Signal Conditioner | Current, Voltage | 0 ~ 20mA, 0 ~ 10V (Configurable) | - | Current, Voltage | 0 ~ 20mA, 0 ~ 10V (Configurable) | 300V (Working), 2500V (Test) | - | Loop Powered | DIN Rail | Screw Terminal | -25°C ~ 70°C |
|
2857-535T-TRANSDUCER UI |
2,002 |
|
データシート |
2857 | Bag | Active | Signal Conditioner | Resistance, Temperature | - | 0 ~ 10kOhm, -210°C ~ 2320°C | Current, Voltage | ±24mA, ±12V | 3000V (Test) | - | 24VDC | DIN Rail | Spring Terminal | -40°C ~ 70°C |
|
AIMI0202PASSIVE LOOP POWERED |
4,197 |
|
データシート |
AIMI | Bulk | Obsolete | Passive Isolator | Current | 0 ~ 20mA | - | Voltage | 0 ~ 20mA | - | - | Loop Powered | DIN Rail | Screw Terminal | -20°C ~ 65°C |
|
|
IAMS0022MOD IAMS ANALOG/DUAL SETPOINT |
1,980 |
|
データシート |
IAMS | Bulk | Active | Signal Conditioner | Current, Voltage, Resistance, Temperature | 0 ~ 20mA, 0 ~ 10V (Configurable) | 0.01 ~ 100kOhm, -200°C ~ 2300°C | Current, Voltage | 0 ~ 20mA, 0 ~ 12V (Configurable) | 2300V | Alarm Relay (2) | 21.6 ~ 253VAC, 19.2 ~ 300VDC | DIN Rail | Screw Terminal | -20°C ~ 60°C |
|
3RS70052FW00SWTCHBL MULTI-RANGE CNVRTR, 24-2 |
4,311 |
|
データシート |
3RS7 | Box | Active | Signal Conditioner | Current, Resistance, Voltage | 0 ~ 20mA, 0 ~ 10V (Configurable) | 100 Ohm, 330k Ohm | Current, Voltage | 0 ~ 20mA, 0 ~ 10V (Configurable) | 300V | - | 24 ~ 240VAC/DC | DIN Rail | Spring Terminal | -25°C ~ 60°C |
|
|
3RS70062FE00SWTCHBL UNIVERSAL CNVRTR, 24VAC/ |
2,614 |
|
データシート |
3RS7 | Box | Active | Isolation Amplifier | Current, Resistance, Voltage | ±20mA, 0 ~ 20V (Configurable) | 100 Ohm, 330k Ohm | Current, Voltage | 0 ~ 20mA, 0 ~ 10V (Configurable) | 50V | - | 24VAC/DC | DIN Rail | Spring Terminal | -25°C ~ 60°C |
|
3RS70061FE00SWTCHBL UNIVERSAL CNVRTR, 24VAC/ |
3,139 |
|
データシート |
3RS7 | Box | Active | Isolation Amplifier | Current, Resistance, Voltage | ±20mA, 0 ~ 20V (Configurable) | 100 Ohm, 330k Ohm | Current, Voltage | 0 ~ 20mA, 0 ~ 20V (Configurable) | 50V | - | 24VAC/DC | DIN Rail | Screw Terminal | -25°C ~ 60°C |
|

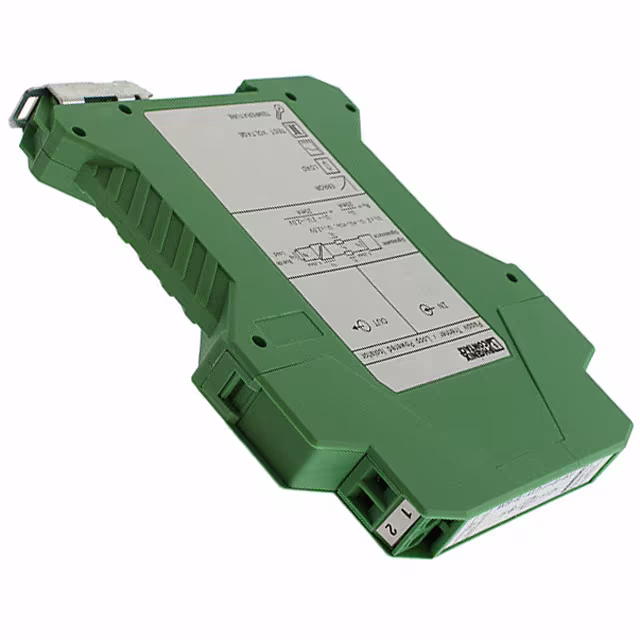

2814841LOOP POWERED ISOLATOR 4-20MA |
2,855 |
|
データシート |
MCR | Bulk | Obsolete | Passive Isolator | Current | 0 ~ 20mA | - | Current | 0 ~ 20mA | 4000V (Test) | - | Loop Powered | DIN Rail | - | -10°C ~ 70°C |
|
|
RMA42-FBAPROCESS TRANSMITTER W/CONTROL |
3,855 |
|
データシート |
- | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
RMA42-BHAPROCESS TRANSMITTER W/CONTROL |
1,712 |
|
データシート |
- | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
15901.2SIGNAL CONDITIONER |
3,996 |
|
データシート |
- | Box | Active | Signal Conditioner | Current, Voltage, Frequency | 10A, 250V | 45 ~ 65Hz | Current, Voltage | 22mA, 11V | - | - | 24V | DIN Rail | Screw Terminal | -20°C ~ 55°C |
|
|
3RS70051KW00SWTCHBL MULTI-RANGE CNVRTR, 24-2 |
1,846 |
|
データシート |
3RS7 | Box | Active | Signal Conditioner | Current, Resistance, Voltage | 0 ~ 20mA, 0 ~ 10V (Configurable) | 100 Ohm, 330k Ohm | - | - | 300V | - | 24 ~ 240VAC/DC | DIN Rail | Screw Terminal | -25°C ~ 60°C |
|
|
3RS70052KW00SWTCHBL MULTI-RANGE CNVRTR, 24-2 |
4,241 |
|
データシート |
3RS7 | Box | Active | Signal Conditioner | Current, Resistance, Voltage | 0 ~ 20mA, 0 ~ 10V (Configurable) | 100 Ohm, 330k Ohm | - | - | 300V | - | 24 ~ 240VAC/DC | DIN Rail | Spring Terminal | -25°C ~ 60°C |
|
|
3RS70061FW00SWTCHBL UNIVERSAL CNVRTR, 24-240 |
2,668 |
|
データシート |
3RS7 | Box | Active | Isolation Amplifier | Current, Resistance, Voltage | ±20mA, 0 ~ 20V (Configurable) | 100 Ohm, 330k Ohm | Current, Voltage | 0 ~ 20mA, 0 ~ 10V (Configurable) | 300V | - | 24 ~ 240VAC/DC | DIN Rail | Screw Terminal | -25°C ~ 60°C |
|
|
3RS70062FW00SWTCHBL UNIVERSAL CNVRTR, 24-240 |
3,619 |
|
データシート |
3RS7 | Box | Active | Isolation Amplifier | Current, Resistance, Voltage | ±20mA, 0 ~ 20V (Configurable) | 100 Ohm, 330k Ohm | Current, Voltage | 0 ~ 20mA, 0 ~ 10V (Configurable) | 300V | - | 24 ~ 240VAC/DC | DIN Rail | Spring Terminal | -25°C ~ 60°C |
|
3RS70252FW00SWTCHBL MULTI-RANGE CNVRTR, 24-2 |
1,088 |
|
データシート |
3RS7 | Box | Active | Isolation Amplifier | Current, Resistance, Voltage | 0 ~ 20mA, 0 ~ 10V (Configurable) | 100 Ohm, 330k Ohm | Current, Voltage | 0 ~ 20mA, 0 ~ 10V (Configurable) | 300V | - | 24 ~ 240VAC/DC | DIN Rail | Spring Terminal | -25°C ~ 60°C |
|
3RS70251FW00SWTCHBL MULTI-RANGE CNVRTR, 24-2 |
1,587 |
|
データシート |
3RS7 | Box | Active | Signal Conditioner | Current, Resistance, Voltage | 0 ~ 20mA, 0 ~ 10V (Configurable) | 100 Ohm, 330k Ohm | Current, Voltage | 0 ~ 20mA, 0 ~ 10V (Configurable) | 300V | - | 24 ~ 240VAC/DC | DIN Rail | Screw Terminal | -25°C ~ 60°C |
|
|
RMA42-CBCPROCESS TRANSMITTER W/CONTROL |
3,671 |
|
データシート |
- | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
RMA42-BHCPROCESS TRANSMITTER W/CONTROL |
4,593 |
|
データシート |
- | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
RMA42-FBCPROCESS TRANSMITTER W/CONTROL |
2,953 |
|
データシート |
- | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - |
