信号コンディショナーおよびアイソレータ
| 写真 | メーカー部品番号 | 在庫状況 | 数量 | データシート | シリーズ | パッケージ | 製品状態 | タイプ | 入力タイプ | 入力範囲 (電流、電圧) | 入力範囲 (追加) | 出力タイプ | 出力範囲 | 絶縁 | 機能 | 電源電圧 | マウントタイプ | 端子スタイル | 動作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TL-QUAD-LOOP-10DC Volt Splitter Isolator. Singl |
2,752 |
|
データシート |
TL | Box | Active | Signal Conditioner Multiplier | Voltage | 0 ~ 10V x 4 | - | Current | 4 ~ 20mA x 4 | 5000V | - | 85 ~ 265VAC, 95 ~ 300VDC | DIN Rail | Screw Terminal | 0°C ~ 50°C |
|
2517450000PICOPAK-CI-CO-LP-S |
1,169 |
|
データシート |
- | Bulk | Active | Passive Isolator | Current | 4 ~ 20mA | - | Current | 4 ~ 20mA | - | - | Loop Powered | DIN Rail | Screw Terminal | -40°C ~ 70°C |
|
2902042MINI MCR-2-U-U |
2,181 |
|
データシート |
MINI MCR | Bulk | Active | Signal Conditioner | Voltage | ±10V | - | Voltage | ±10V | - | - | 24VDC | DIN Rail | Screw Terminal | -40°C ~ 70°C |
|
|
2902003MINI MCR-2-I4-U-PT |
3,871 |
|
データシート |
MINI MCR | Bulk | Active | Signal Conditioner | Current | 4 ~ 20mA | - | Voltage | 0 ~ 10V | - | - | 24VDC | DIN Rail | Screw Terminal | -40°C ~ 70°C |
|
2902002MINI MCR-2-I4-U |
1,709 |
|
データシート |
MINI MCR | Bulk | Active | Signal Conditioner | Current | 4 ~ 20mA | - | Voltage | 0 ~ 10V | - | - | 24VDC | DIN Rail | Screw Terminal | -40°C ~ 70°C |
|
2902043MINI MCR-2-U-U-PT |
3,184 |
|
データシート |
MINI MCR | Bulk | Active | Signal Conditioner | Voltage | ±10V | - | Voltage | ±10V | - | - | 24VDC | DIN Rail | Screw Terminal | -40°C ~ 70°C |
|
ADAM-3016-AEISOLATED STRAIN GAUGE INPUT MODU |
4,926 |
|
データシート |
ADAM-3016 | Box | Active | Isolation Amplifier | - | - | - | Current, Voltage | 0 ~ 20mA, ±10V | 1000V | - | 24VDC | DIN Rail | Screw Terminal | -10°C ~ 70°C |
|
2902063OUTPUT LOOP-POWERED 2-WAY ISOLAT |
1,694 |
|
データシート |
MINI MCR | Bulk | Active | Signal Conditioner | Current, Voltage | 0 ~ 40mA, ±30V (Configurable) | - | Current | 4 ~ 20mA | 3000V (Test) | - | Loop Powered | DIN Rail | Spring Terminal | -40°C ~ 70°C |
|
|
2902021MINI MCR-2-U-UI-PT |
4,449 |
|
データシート |
MINI MCR | Bulk | Active | Signal Conditioner | Voltage | 0 ~ 10V | - | Voltage | ±10V | 3000V | - | 24V | DIN Rail | Screw Terminal | -40°C ~ 70°C |
|
2902040MINI MCR-2-UI-UI-PT |
3,444 |
|
データシート |
MINI MCR | Bulk | Active | Signal Conditioner | Current, Voltage | ±20mA, ±30V (Configurable) | - | Current, Voltage | 0 ~ 20mA, 0 ~ 10V (Configurable) | - | - | 24VDC | DIN Rail | Screw Terminal | -40°C ~ 70°C |
|
2905278SINGLE-CHANNEL 2-WAY ISOLATOR |
4,240 |
|
データシート |
MACX MCR | Bulk | Active | Passive Isolator | Current | 0 ~ 20mA | - | Current | 0 ~ 20mA | - | - | Loop Powered | DIN Rail | Screw Terminal | -40°C ~ 85°C |
|
|
2902058MINI MCR-2-F-UI-PT |
1,380 |
|
データシート |
MINI MCR | Bulk | Active | Signal Conditioner | Frequency | - | 0.002 ~ 200kHz | Current, Voltage | 0 ~ 20mA, 0 ~ 10V (Configurable) | 3000V | - | 24V | DIN Rail | Screw Terminal | -40°C ~ 70°C |
|

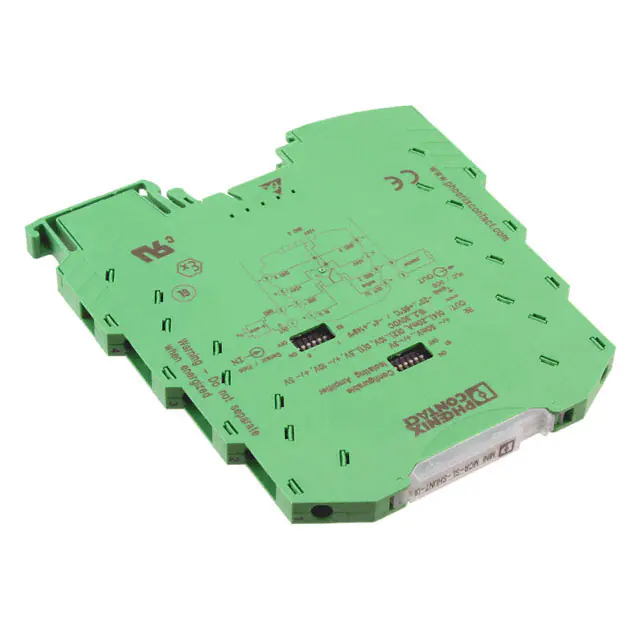

28107803-WAY ISOLATING AMP 4-20MA |
1,107 |
|
データシート |
MINI MCR | Bulk | Active | Signal Conditioner | Voltage | ±3V (Configurable) | - | Current, Voltage | 0 ~ 20mA, 0 ~ 10V (Configurable) | 1500V (Test) | - | 24VDC | DIN Rail | Screw Terminal | -20°C ~ 65°C |
|

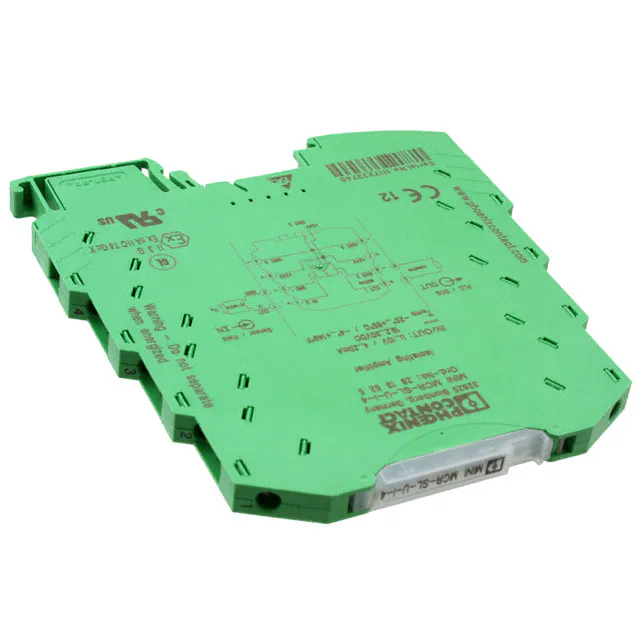

2813525SIGNAL CONDITIONER 4-20MA DIN |
4,588 |
|
データシート |
MINI MCR | Bulk | Active | Signal Conditioner | Voltage | 0 ~ 10V | - | Current | 4 ~ 20mA | 1500V (Test) | - | 24VDC | DIN Rail | Screw Terminal | -20°C ~ 65°C |
|

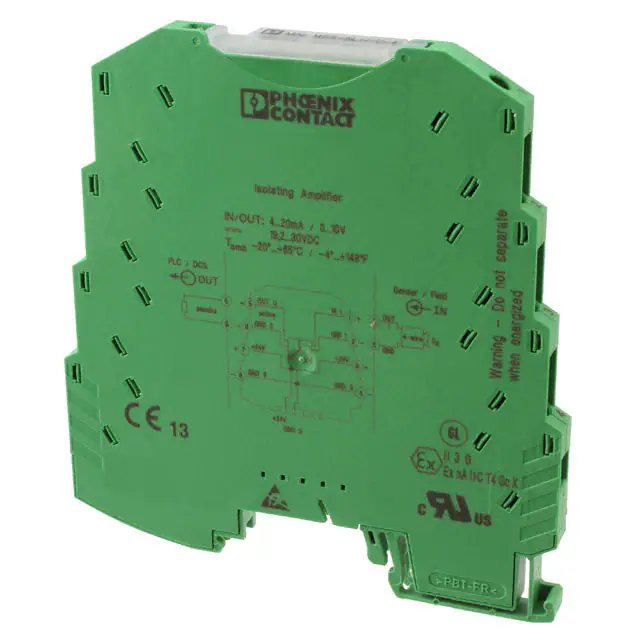

28135383-WAY ISOLATING AMP 4-20MA |
4,822 |
|
データシート |
MINI MCR | Bulk | Active | Signal Conditioner | Current | 4 ~ 20mA | - | Voltage | 0 ~ 10V | 1500V (Test) | - | 24VDC | DIN Rail | Spring Terminal | -20°C ~ 65°C |
|
857-412ISOLATION AMPLIFIER; VOLTAGE INP |
4,380 |
|
データシート |
857 | Bag | Active | Isolation Amplifier | Voltage | 0 ~ 10V (Configurable) | 0 ~ 100kOhm | Voltage | 0 ~ 10V (Configurable) | 2500V (Test) | - | 24VDC | DIN Rail | Spring Terminal | -25°C ~ 70°C |
|
857-450LOOP-POWERED ISOLATION AMPLIFIER |
1,083 |
|
データシート |
857 | Bag | Active | Isolation Amplifier | Current, Voltage | ±20mA, ±20V (Configurable) | 0 ~ 1MOhm | Current | 4 ~ 20mA | 2500V (Test) | - | 8 ~ 30VDC | DIN Rail | Spring Terminal | -25°C ~ 70°C |
|
2905028UNIVERSALLY CONFIGURABLE 4-WAY S |
1,330 |
|
データシート |
MINI MCR | Bulk | Active | Signal Conditioner | Current, Voltage | 0 ~ 20mA, 0 ~ 10V (Configurable) | - | Voltage | 0 ~ 20mA, 0 ~ 10V (Configurable) | 3000V (Test) | - | 24VDC | DIN Rail | Spring Terminal | -40°C ~ 70°C |
|
28644191 CHANNEL LOOP POWERED ISOLATOR |
4,139 |
|
データシート |
MINI MCR | Bulk | Active | Passive Isolator | Current | 0 ~ 20mA | - | Current | 0 ~ 20mA | 1500V (Test) | - | 24VDC | DIN Rail | Screw Terminal | -20°C ~ 65°C |
|
2865340ISOLATED AMP 2 CHAN DIN RAIL |
2,039 |
|
データシート |
MACX MCR | Bulk | Active | Isolation Amplifier | Current | 0 ~ 20mA | - | Current | 0 ~ 20mA | 375V | - | 24VDC | DIN Rail | Screw Terminal | -20°C ~ 60°C |
