自動車用リレー
| 写真 | メーカー部品番号 | 在庫状況 | 数量 | データシート | シリーズ | パッケージ | 製品状態 | コイルタイプ | コイル電流 | コイル電圧 | 接点形式 | 接点定格（電流） | スイッチング電圧 | 動作電圧 | 解放電圧 | 動作時間 | 解放時間 | 機能 | マウントタイプ | 端子スタイル | 動作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

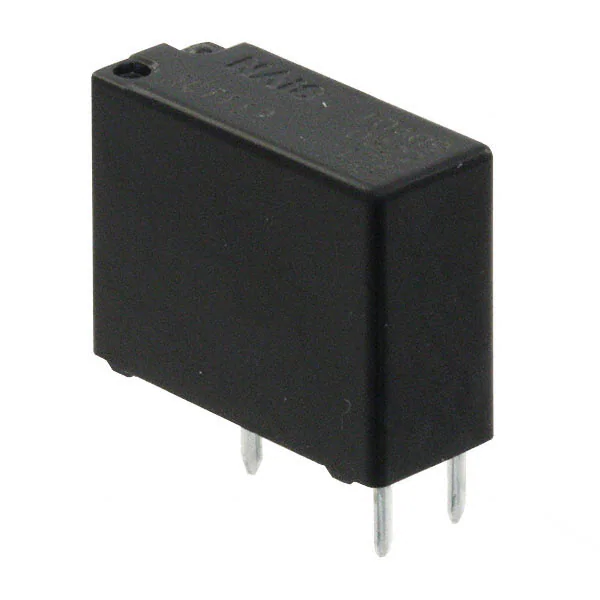

ACT112RELAY AUTOMOTIVE SPDT 20A 12V |
5,209 |
|
データシート |
ACT | Tube | Active | Non Latching | 66.7 mA | 12VDC | SPDT (1 Form C) | 20 A | 14VDC - Nom | 7.2 VDC | 1 VDC | 10 ms | 10 ms | - | Through Hole | PC Pin | -40°C ~ 85°C |
|
AZ9731-1C-12DC4RELAY AUTOMOTIVE SPDT 30A 12V |
1,102 |
|
データシート |
AZ9731 | Tray | Active | Non Latching | 133.3 mA | 12VDC | SPDT (1 Form C) | 30 A | 75VDC - Max | 7.8 VDC | 1.8 VDC | 7 ms | 5 ms | MINI-ISO, Shrouded w/ Steel Bracket | Chassis Mount | Plug In, Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|
CB1-R-12VRELAY AUTOMOTIVE SPDT 40A 12V |
7,081 |
|
データシート |
CB | Bulk | Active | Non Latching | 134 mA | 12VDC | SPDT (1 Form C) | 40 A | 14VDC - Nom | 7 VDC | 1.2 VDC | 15 ms | 15 ms | Resistor, Sealed - Fully | Socketable | Plug In, Quick Connect - 0.250" (6.3mm) | -40°C ~ 85°C |
|
EX1-2U1SAUTO RELAY 1 FORM C 12V |
4,312 |
|
データシート |
EX1 | Tube | Active | Non Latching | 75 mA | 12VDC | SPDT (1 Form C) | 30 A | 16VDC - Max | 6.5 VDC | 0.9 VDC | 2.5 ms | 3 ms | Sealed - Fully | Through Hole | PC Pin | -40°C ~ 125°C |
|
CP1-12VRELAY AUTOMOTIVE SPDT 20A 12V |
3,638 |
|
データシート |
CP | Tube | Active | Non Latching | 53.3 mA | 12VDC | SPDT (1 Form C) | 20 A | 14VDC - Nom | 7.2 VDC | 1 VDC | 10 ms | 10 ms | Sealed - Fully | Through Hole | PC Pin | -40°C ~ 85°C |
|
|
CB1-12VRELAY AUTOMOTIVE SPDT 40A 12V |
8,369 |
|
データシート |
CB | Bulk | Active | Non Latching | 117 mA | 12VDC | SPDT (1 Form C) | 40 A | 14VDC - Nom | 7 VDC | 1.2 VDC | 15 ms | 15 ms | Sealed - Fully | Socketable | Plug In, Quick Connect - 0.250" (6.3mm) | -40°C ~ 85°C |
|
PC785-1C-12S-R-XRELAY AUTOMOTIVE SPDT 35A 12V |
5,417 |
|
データシート |
- | Tube | Active | Non Latching | 128 mA | 12VDC | SPDT (1 Form C) | - | 75VDC - Max | 7.2 VDC | 1.2 VDC | 5 ms | 2 ms | Resistor, Sealed - Fully | Socketable | Plug In | -40°C ~ 125°C |
|
PC785-1C-12C-D-XRELAY AUTOMOTIVE SPDT 35A 12V |
2,255 |
|
データシート |
- | Tray | Active | Non Latching | 110 mA | 12VDC | SPDT (1 Form C) | - | 75VDC - Max | 7.2 VDC | 1.2 VDC | 5 ms | 2 ms | Diode | Socketable | Plug In | -40°C ~ 125°C |
|
|
CP1A-12VRELAY AUTOMOTIVE SPST 20A 12V |
3,642 |
|
データシート |
CP | Tube | Active | Non Latching | 53.3 mA | 12VDC | SPST-NO (1 Form A) | 20 A | 14VDC - Nom | 7.2 VDC | 1 VDC | 10 ms | 10 ms | Sealed - Fully | Through Hole | PC Pin | -40°C ~ 85°C |
|
PC785-1C-24S-R-XRELAY AUTOMOTIVE SPDT 17A 24V |
1,000 |
|
データシート |
- | Tube | Active | Non Latching | 64 mA | 24VDC | SPDT (1 Form C) | 17 A | 75VDC - Max | 14.4 VDC | 2.4 VDC | 5 ms | 2 ms | Resistor, Sealed - Fully | Socketable | Plug In | -40°C ~ 125°C |
|
CB1AH-P-12VRELAY AUTOMOTIVE SPST 70A 12V |
8,138 |
|
データシート |
CB | Bulk | Active | Non Latching | 117 mA | 12VDC | SPST-NO (1 Form A) | 70 A | 14VDC - Nom | 7 VDC | 1.2 VDC | 15 ms | 15 ms | Sealed - Fully | Through Hole | PC Pin | -40°C ~ 85°C |
|
CP1SA-12V-XRELAY AUTOMOTIVE SPDT 20A 12V |
8,244 |
|
データシート |
CP | Tape & Reel (TR) | Active | Non Latching | 53.3 mA | 12VDC | SPDT (1 Form C) | 20 A | 14VDC - Nom | 7.2 VDC | 1 VDC | 10 ms | 10 ms | Sealed - Fully | Surface Mount | Gull Wing | -40°C ~ 85°C |
|
EX2-2U1SAUTO RELAY 2 FORM C 12V |
1,029 |
|
データシート |
EX2 | Tube | Active | Non Latching | 75 mA | 12VDC | SPDT (1 Form C) x 2 | 30 A | 16VDC - Max | 6.5 VDC | 0.9 VDC | 2.5 ms | 3 ms | Sealed - Fully | Through Hole | PC Pin | -40°C ~ 125°C |
|
A2S1CSQ24VDC1.6RRELAY AUTOMOTIVE SPDT 40A 24V |
5,756 |
|
データシート |
A2 | Tray | Active | Non Latching | 66.7 mA | 24VDC | SPDT (1 Form C) | 40 A | 75VDC - Max | 16.8 VDC | 2.4 VDC | 7 ms | 5 ms | Resistor, Sealed - Fully | Chassis Mount | Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|
A91AC12VDCRELAY AUTOMOTIVE SPST 40A 12V |
3,430 |
|
データシート |
A9 | Tray | Active | Non Latching | 150 mA | 12VDC | SPST-NO (1 Form A) | 40 A | 75VDC - Max | 8.4 VDC | 1.2 VDC | 7 ms | 5 ms | - | Chassis Mount | Quick Connect - 0.250" (6.3mm) | -40°C ~ 85°C |
|
PC792A-1C-C3-12S-RN-XRELAY AUTOMOTIVE SPDT 40A 12V |
2,820 |
|
データシート |
- | Bag | Active | Non Latching | 150.9 mA | 12VDC | SPDT (1 Form C) | 40 A | 75VDC - Max | 7.8 VDC | 1.8 VDC | 7 ms | 2 ms | Resistor, Sealed - Fully | Chassis Mount | Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|
PC792A-1C-C3-12S-DN-XRELAY AUTOMOTIVE SPDT 40A 12V |
1,204 |
|
データシート |
- | Box | Active | Non Latching | 133.3 mA | 12VDC | SPDT (1 Form C) | - | 75VDC - Max | 7.8 VDC | 1.8 VDC | 7 ms | 2 ms | Diode, Sealed - Fully | Chassis Mount | Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|
|
CB1AH-P-24VRELAY AUTOMOTIVE SPST 70A 24V |
1,108 |
|
データシート |
CB | Tube | Active | Non Latching | 58 mA | 24VDC | SPST-NO (1 Form A) | 20 A | 28VDC - Nom | 14 VDC | 2.4 VDC | 15 ms | 15 ms | Sealed - Fully | Through Hole | PC Pin | -40°C ~ 85°C |
|
A31ASP12VDC2RELAY AUTOMOTIVE SPST 80A 12V |
911 |
|
データシート |
A3 | Tray | Active | Non Latching | 150 mA | 12VDC | SPST-NO (1 Form A) | 80 A | 75VDC - Max | 8.4 VDC | 1.2 VDC | 7 ms | 5 ms | Sealed - Fully | Through Hole | PC Pin | -40°C ~ 125°C |
|
CM1-12VRELAY AUTOMOTIVE SPDT 35A 12V |
2,617 |
|
データシート |
CM | Bulk | Active | Non Latching | 125 mA | 12VDC | SPDT (1 Form C) | 35 A | 14VDC - Nom | 7 VDC | 1.2 VDC | 10 ms | 10 ms | Sealed - Fully | Socketable | Plug In | -40°C ~ 85°C |
