AC DC コンバータ
| 写真 | メーカー部品番号 | 在庫状況 | 数量 | データシート | シリーズ | パッケージ | 製品状態 | タイプ | 出力の数 | 電圧 - 入力 | 電圧 - 出力1 | 電圧 - 出力 2 | 電圧 - 出力 3 | 電圧 - 出力 4 | 電圧 - 出力 5 | 電圧 - 出力 6 | 電流 - 出力 1 | 電流 - 出力 2 | 電流 - 出力 3 | 電流 - 出力 4 | 電流 - 出力 5 | 電流 - 出力 6 | 電力 (ワット) | アプリケーション | 電圧 - 絶縁 | 効率 | 動作温度 | 機能 | マウントタイプ | サイズ/寸法 | 承認機関 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ECS45US24AC/DC CONVERTER 24V 45W |
1,035 |
|
データシート |
ECS (45W) | Box | Active | Open Frame | 1 | 80 ~ 264 VAC | 24V | - | - | - | - | - | 1.9 A | - | - | - | - | - | 45W | ITE (Commercial), Medical | 4 kV | 90% | -20°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 3.00" L x 2.00" W x 1.05" H (76.2mm x 50.8mm x 26.7mm) | CB |
|
|
ECS45US12AC/DC CONVERTER 12V 45W |
373 |
|
データシート |
ECS (45W) | Box | Active | Open Frame | 1 | 80 ~ 264 VAC | 12V | - | - | - | - | - | 3.75 A | - | - | - | - | - | 45W | ITE (Commercial), Medical | 4 kV | 90% | -20°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 3.00" L x 2.00" W x 1.05" H (76.2mm x 50.8mm x 26.7mm) | CB |
|
LFWLP75-1303AC/DC CONVERTER 24V 75W |
148 |
|
データシート |
WLP75 (75W) | Bulk | Active | Open Frame | 1 | 85 ~ 264 VAC, 390VDC | 24V | - | - | - | - | - | 3.12 A | - | - | - | - | - | 75W | ITE (Commercial) | 3 kV | 91% | -40°C ~ 70°C (With Derating) | Adjustable Output, PFC, Standby Output, Universal Input | Chassis Mount | 3.00" L x 2.00" W x 1.00" H (76.2mm x 50.8mm x 25.4mm) | CB, CCC, CE, cUL, NEMKO, UL |
|

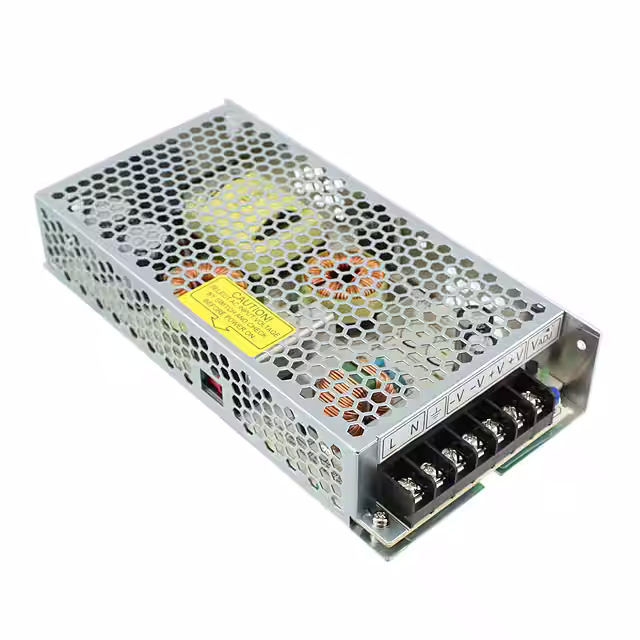

LS150-24AC/DC CONVERTER 24V 150W |
922 |
|
データシート |
LS (150W) | Bulk | Active | Enclosed | 1 | 88 ~ 264 VAC | 24V | - | - | - | - | - | 6.5 A | - | - | - | - | - | 150W | ITE (Commercial) | 3 kV | 86% | -25°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 7.80" L x 3.90" W x 1.50" H (198.1mm x 99.1mm x 38.1mm) | CE |
|
|
LS150-36AC/DC CONVERTER 36V 150W |
686 |
|
データシート |
LS (150W) | Bulk | Active | Enclosed | 1 | 88 ~ 264 VAC | 36V | - | - | - | - | - | 4.3 A | - | - | - | - | - | 150W | ITE (Commercial) | 3 kV | 87% | -25°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 7.80" L x 3.90" W x 1.50" H (198.1mm x 99.1mm x 38.1mm) | CE |
|
|
LS150-12AC/DC CONVERTER 12V 150W |
440 |
|
データシート |
LS (150W) | Bulk | Active | Enclosed | 1 | 88 ~ 264 VAC | 12V | - | - | - | - | - | 12.5 A | - | - | - | - | - | 150W | ITE (Commercial) | 3 kV | 83% | -25°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 7.80" L x 3.90" W x 1.50" H (198.1mm x 99.1mm x 38.1mm) | CE |
|
EPP-200-48AC/DC CONVERTER 48V 144W |
1,050 |
|
データシート |
EPP-200 (200W) | Box | Active | Open Frame | 1 | 80 ~ 264 VAC, 113 ~ 370 VDC | 48V | - | - | - | - | - | 3 A | - | - | - | - | - | 144W (202W Forced Air) | ITE (Commercial) | 3 kV | 94% | -30°C ~ 70°C (With Derating) | Adjustable Output, PFC, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.14" H (101.6mm x 50.8mm x 29.0mm) | CB, CE, cURus, TUV |
|
|
EPP-200-12AC/DC CONVERTER 12V 140W |
653 |
|
データシート |
EPP-200 (200W) | Box | Active | Open Frame | 1 | 80 ~ 264 VAC, 113 ~ 370 VDC | 12V | - | - | - | - | - | 11.7 A | - | - | - | - | - | 140W (200W Forced Air) | ITE (Commercial) | 3 kV | 93% | -30°C ~ 70°C (With Derating) | Adjustable Output, PFC, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.14" H (101.6mm x 50.8mm x 29.0mm) | CB, CE, cURus, TUV |
|
|
EPP-200-27AC/DC CONVERTER 27V 143W |
187 |
|
データシート |
EPP-200 (200W) | Box | Active | Open Frame | 1 | 80 ~ 264 VAC, 113 ~ 370 VDC | 27V | - | - | - | - | - | 5.3 A | - | - | - | - | - | 143W (203W Forced Air) | ITE (Commercial) | 3 kV | 94% | -30°C ~ 70°C (With Derating) | Adjustable Output, PFC, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.14" H (101.6mm x 50.8mm x 29.0mm) | CB, CE, cURus, TUV |
|
|
EPP-200-24AC/DC CONVERTER 24V 142W |
3,826 |
|
データシート |
EPP-200 (200W) | Box | Active | Open Frame | 1 | 80 ~ 264 VAC, 113 ~ 370 VDC | 24V | - | - | - | - | - | 5.9 A | - | - | - | - | - | 142W (202W Forced Air) | ITE (Commercial) | 3 kV | 94% | -30°C ~ 70°C (With Derating) | Adjustable Output, PFC, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.14" H (101.6mm x 50.8mm x 29.0mm) | CB, CE, cURus, TUV |
|
PJ-24V150WBNAAC/DC CONVERTER 24V 150W |
131 |
|
データシート |
PJ (150W) | Bulk | Active | Open Frame, Conformal Coated | 1 | 85 ~ 264 VAC | 24V | - | - | - | - | - | 6.3 A | - | - | - | - | - | 150W | ITE (Commercial) | 3 kV | 91% | -10°C ~ 70°C (With Derating) | Adjustable Output, PFC, Universal Input | Chassis Mount | 6.30" L x 2.95" W x 1.46" H (160.0mm x 75.0mm x 37.0mm) | CB, CE, cURus, TUV |
|
ECS65US24AC/DC CONVERTER 24V 65W |
1,310 |
|
データシート |
ECS (65W) | Box | Active | Open Frame | 1 | 80 ~ 264 VAC | 24V | - | - | - | - | - | 2.7 A | - | - | - | - | - | 65W | ITE (Commercial), Medical | 4 kV | 90% | -20°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.05" H (101.6mm x 50.8mm x 26.7mm) | CB |
|
|
ECS65US12AC/DC CONVERTER 12V 65W |
488 |
|
データシート |
ECS (65W) | Box | Active | Open Frame | 1 | 80 ~ 264 VAC | 12V | - | - | - | - | - | 5.4 A | - | - | - | - | - | 65W | ITE (Commercial), Medical | 4 kV | 90% | -20°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.05" H (101.6mm x 50.8mm x 26.7mm) | CB |
|
RSP-200-24AC/DC CONVERTER 24V 202W |
4,980 |
|
データシート |
RSP-200 (200W) | Box | Active | Enclosed | 1 | 88 ~ 264 VAC, 124 ~ 370 VDC | 24V | - | - | - | - | - | 8.4 A | - | - | - | - | - | 202W | ITE (Commercial) | 3 kV | 89.5% | -30°C ~ 70°C (With Derating) | Adjustable Output, PFC, Universal Input | Chassis Mount | 8.46" L x 4.53" W x 1.18" H (215.0mm x 115.0mm x 30.0mm) | CB, CCC, CE, cURus, TUV |
|
|
RSP-200-12AC/DC CONVERTER 12V 200W |
3,887 |
|
データシート |
RSP-200 (200W) | Box | Active | Enclosed | 1 | 88 ~ 264 VAC, 124 ~ 370 VDC | 12V | - | - | - | - | - | 16.7 A | - | - | - | - | - | 200W | ITE (Commercial) | 3 kV | 89% | -30°C ~ 70°C (With Derating) | Adjustable Output, PFC, Universal Input | Chassis Mount | 8.46" L x 4.53" W x 1.18" H (215.0mm x 115.0mm x 30.0mm) | CB, CCC, CE, cURus, TUV |
|
CFM60T-02AC/DC CONVERTER 5V +/-15V 62W |
317 |
|
データシート |
CFM40T (60W) | Box | Active | Open Frame | 3 | 90 ~ 264 VAC | 5V | 15V | -15V | - | - | - | 4 A | 2.5 A | 300 mA | - | - | - | 62W | ITE (Commercial) | 4.242 kV | 83% | 0°C ~ 60°C (With Derating) | Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.26" H (101.6mm x 50.8mm x 32.0mm) | CE, cURus, FCC, TUV |
|
ECM40US24AC/DC CONVERTER 24V 40W |
2,579 |
|
データシート |
ECM (40W) | Box | Active | Open Frame | 1 | 90 ~ 264 VAC | 24V | - | - | - | - | - | 1.7 A | - | - | - | - | - | 40W | ITE (Commercial), Medical | 4 kV | 80% | 0°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.20" H (101.6mm x 50.8mm x 30.5mm) | CB, CE |
|
|
ECM40US05AC/DC CONVERTER 5V 40W |
1,585 |
|
データシート |
ECM (40W) | Box | Active | Open Frame | 1 | 90 ~ 264 VAC | 5V | - | - | - | - | - | 8 A | - | - | - | - | - | 40W | ITE (Commercial), Medical | 4 kV | 80% | 0°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.20" H (101.6mm x 50.8mm x 30.5mm) | CB, CE |
|
|
ECM40US12AC/DC CONVERTER 12V 40W |
1,276 |
|
データシート |
ECM (40W) | Box | Active | Open Frame | 1 | 90 ~ 264 VAC | 12V | - | - | - | - | - | 3.5 A | - | - | - | - | - | 40W | ITE (Commercial), Medical | 4 kV | 80% | 0°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.20" H (101.6mm x 50.8mm x 30.5mm) | CB, CE |
|
RPS-200-24AC/DC CONVERTER 24V 142W |
1,795 |
|
データシート |
RPS-200 (200W) | Box | Active | Open Frame | 1 | 80 ~ 264 VAC, 113 ~ 370 VDC | 24V | - | - | - | - | - | 5.9 A | - | - | - | - | - | 142W (202W Forced Air) | Medical | 4 kV | 94% | -30°C ~ 70°C (With Derating) | Adjustable Output | Chassis Mount | 4.00" L x 2.00" W x 1.14" H (101.6mm x 50.8mm x 29.0mm) | CB, CE, cURus, TUV |
